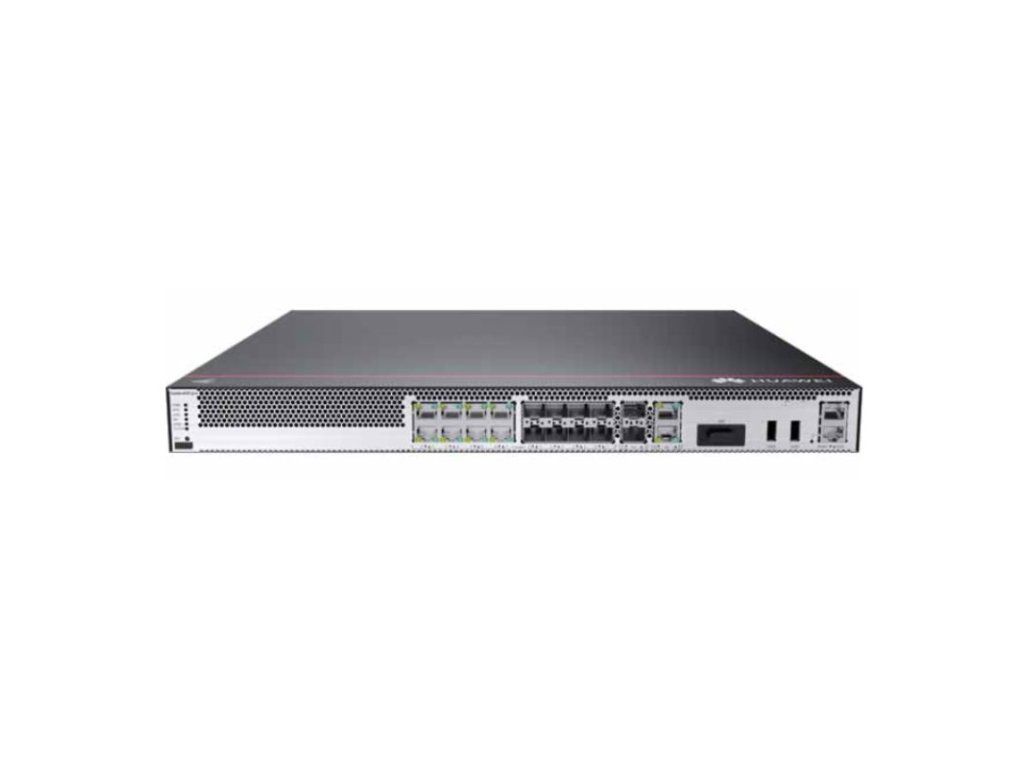

Huawei USG6000F-S200 AI Firewall
Code: USG6000F-S200Product detailed description
Huawei eKitEngine USG6000F-S200 AI Firewall
Huawei USG6000F-S200 is a powerful rack-mounted next-generation firewall for protecting corporate networks, branches, and smaller data centers. It offers high firewall throughput up to 16 Gbps, 10GE interface support, VPN, IPS, antivirus, URL filtering, Anti-DDoS protection, and central management via Huawei SecoManager or NCE-Campus.
✅ Key Benefits
- Powerful AI firewall for protecting enterprise networks, servers, and internet gateways.
- IPv4 firewall throughput up to 16 Gbps and NGFW throughput up to 3 Gbps.
- Integrated protection: firewall, VPN, IPS, antivirus, URL filtering, Anti-DDoS, and application control.
- 10GE SFP+ interface support for fast uplinks and backbone connectivity.
- High capacity up to 4,000,000 concurrent sessions and up to 120,000 new sessions per second.
- Central management, clear reports, and simplified security policy deployment.
📊 Technical Specifications
| Model | Huawei eKitEngine USG6000F-S200 |
|---|---|
| Recommended User Count | 2500 |
| IPv4 Firewall Throughput | 16 / 16 / 5 Gbps for packet sizes 1518 / 512 / 64 bytes |
| IPv6 Firewall Throughput | 16 / 16 / 5 Gbps for packet sizes 1518 / 512 / 84 bytes |
| NGFW Throughput | 3 Gbps at HTTP 100K |
| Threat Protection Throughput | 2.5 Gbps with FW, SA, IPS and AV enabled |
| IPsec VPN Throughput | 5.6 Gbps |
| Maximum IPsec VPN Tunnels | 4000 |
| SSL VPN Throughput | 750 Mbps |
| SSL VPN Users | 100 default / 2000 maximum |
| Concurrent Sessions | 4,000,000 |
| New Sessions per Second | 120,000 |
| Security Policies | Up to 15,000 |
| Virtual Firewalls | Up to 100 |
| VLANs | Up to 4094 |
| Fixed Interfaces | 2× 10GE SFP+ + 8× GE Combo + 16× GE RJ45 |
| USB Port | 1× USB 3.0 |
| Power Supply | Dual AC power supplies, 100–240 V AC, 50/60 Hz |
| Maximum Power Consumption | 53.2 W |
| Dimensions | 43.6 × 442 × 420 mm |
| Weight | 5.816 kg |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 5% to 95%, non-condensing |
| Installation | Rack |
🛡️ Advanced Features
- Application recognition and control with database of over 6000 preset applications.
- IPS protection against vulnerabilities, web attacks, botnets, trojans, and intrusion attempts.
- Antivirus file scanning via HTTP, FTP, SMTP, POP3, IMAP4, NFS, and SMB.
- URL filtering with cloud database of over 560 million URLs in more than 130 categories.
- DNS security for detecting malicious domains, DGA domains, phishing, ransomware, and C&C communication.
- Anti-DDoS protection against common volumetric and packet attacks.
- TLS/SSL traffic inspection for detecting threats hidden in encrypted communication.
- VPN features including IPsec VPN, SSL VPN, and GRE with support for multiple encryption algorithms.
- IPv4 and IPv6 routing support including RIP, OSPF, BGP, IS-IS, RIPng, OSPFv3, and BGP4+.
- Centralized management, reports, telemetry, and integration capability into Huawei security ecosystem.
✅ Ideal Use Cases
- Perimeter protection for medium and larger corporate networks.
- Secure branch connectivity using IPsec VPN and SSL VPN.
- Protection of servers, internal services, and applications from network attacks.
- Deployment at internet gateway with high throughput and low latency requirements.
- Network segmentation using VLANs, security zones, and virtual firewalls.
- User traffic management, web filtering, and malware protection in corporate networks.
Additional parameters
| Category: | Router/MESH |
|---|---|
| Warranty: | 3 years |
| Downlink port: | 1GE, 2.5GE, 10GE |
| Type of PON network: | MESH/Router |
