VSOL XGS-PON ENTRANCE KIT
Code: VSOL.XGS.E.SETRelated products
Product detailed description
V3600GS + 10× V2901Q-A-XGS Set – XGS-PON Solution for 10 Optical Connections
This complete starter set for a modern XGS-PON optical network includes 1× compact V3600GS OLT and 10× V2901Q-A-XGS ONT client terminals with 2.5GbE ports. The set is ideal for fast FTTH, FTTO, SOHO and small business deployments where high speed, simple management and future network expansion are required.
✅ Main Benefits
- Complete set for 10 customer XGS-PON connections.
- The V3600GS OLT supports XGS-PON, XG-PON and GPON in one compact device.
- One Combo PON port with support for a split ratio of up to 1:128 and transmission distance of up to 20 km.
- Each V2901Q-A-XGS ONT provides 1× 2.5GbE RJ45 port for higher speed than standard 1GbE client terminals.
- Suitable for ISPs, smaller optical networks, apartment buildings, offices, SOHO and business customers.
- Support for bridge and router mode on ONT units.
📊 Technical Parameters
| Set contents | 1× V3600GS OLT + 10× V2901Q-A-XGS ONT |
|---|---|
| Technology | XGS-PON / XG-PON / GPON |

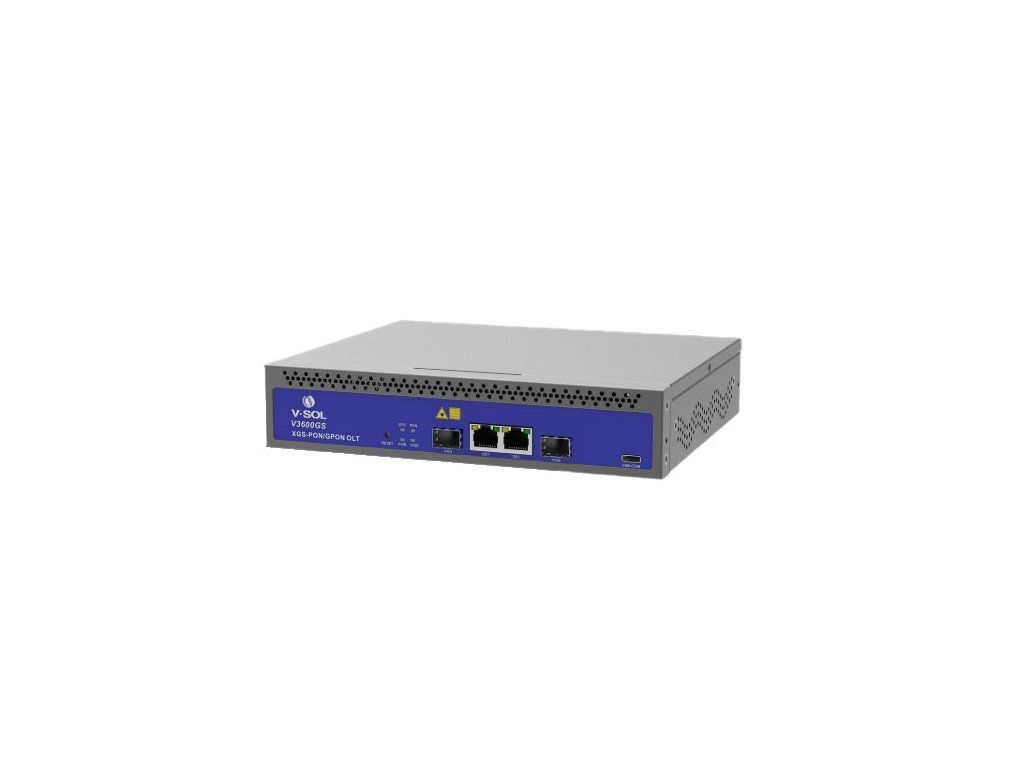

| OLT model | V3600GS |
| OLT PON port | 1× XG(S)-PON / GPON Combo, SFP+ slot |
| OLT uplink ports | 2× GE RJ45 + 1× GE/10GE SFP/SFP+ |
| GPON speed | 1.244 Gb/s upstream, 2.488 Gb/s downstream |
| XG-PON speed | 2.488 Gb/s upstream, 9.953 Gb/s downstream |
| XGS-PON speed | 9.953 Gb/s upstream, 9.953 Gb/s downstream |
| Maximum OLT split ratio | Up to 1:128 |
| Maximum transmission distance | Up to 20 km |
| XGS-PON wavelengths | 1577 nm downstream / 1270 nm upstream |
| OLT management | WEB, Telnet, CLI, SNMP |

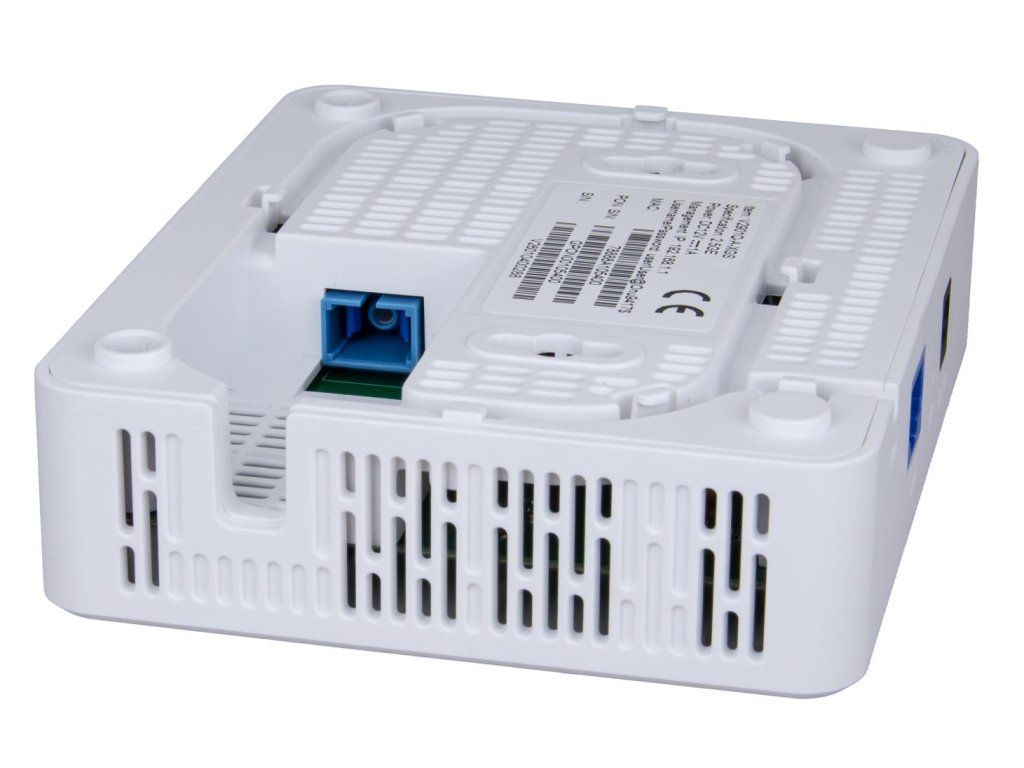

| ONT model | V2901Q-A-XGS |
| Number of ONTs in the set | 10 pcs |
| ONT optical port | SC/UPC, single mode |
| ONT user port | 1× 2.5GbE RJ45, auto-negotiation |
| ONT sensitivity | -28 dBm |
| ONT optical output power | 6 dBm for XGS-PON |
| ONT power supply | 12 V / 1 A |
| ONT maximum power consumption | 12 W |
| ONT dimensions | 120 × 100 × 30 mm |
| ONT operating temperature | -10 °C to +55 °C |
🛡️ Advanced Features
- IPv4 / IPv6 dual stack support.
- Bridge and router mode for flexible customer connection setup.
- VLAN tag, transparent, trunk and hybrid mode.
- QoS with WRR and SP+WRR support.
- Multicast functions including IGMP v1/v2/v3, IGMP snooping and MLD snooping.
- Security functions: filtering by IP address, ports, ACL, MAC and URL, Anti-DDoS.
- Dying Gasp, Port Loop Detect, Eth Port Los, storm control and flow control.
- ONT management via WEB, Telnet, SSH and OMCI.
✅ Ideal Use
- Deployment of a smaller XGS-PON network for internet service providers.
- Optical connectivity for apartment buildings and smaller residential areas.
- FTTH connections with speeds of up to 2.5 Gb/s on the customer LAN port.
- FTTO solutions for offices, branches and business customers.
- Test, pilot or migration network from GPON to XGS-PON.
- Connections for customers who want to use their own router behind the ONT terminal.
Additional parameters
| Category: | Set of OLT / ONT |
|---|---|
| Warranty: | 2 years |
| Downlink port: | 2.5GE |
| Type of PON network: | GPON, XGS-PON, XG-PON |
| Wi-Fi: | - - - |
