XG(S)-PON OLT V3600G1-C
Code: V3600G1-C V1.4Related products
Product detailed description

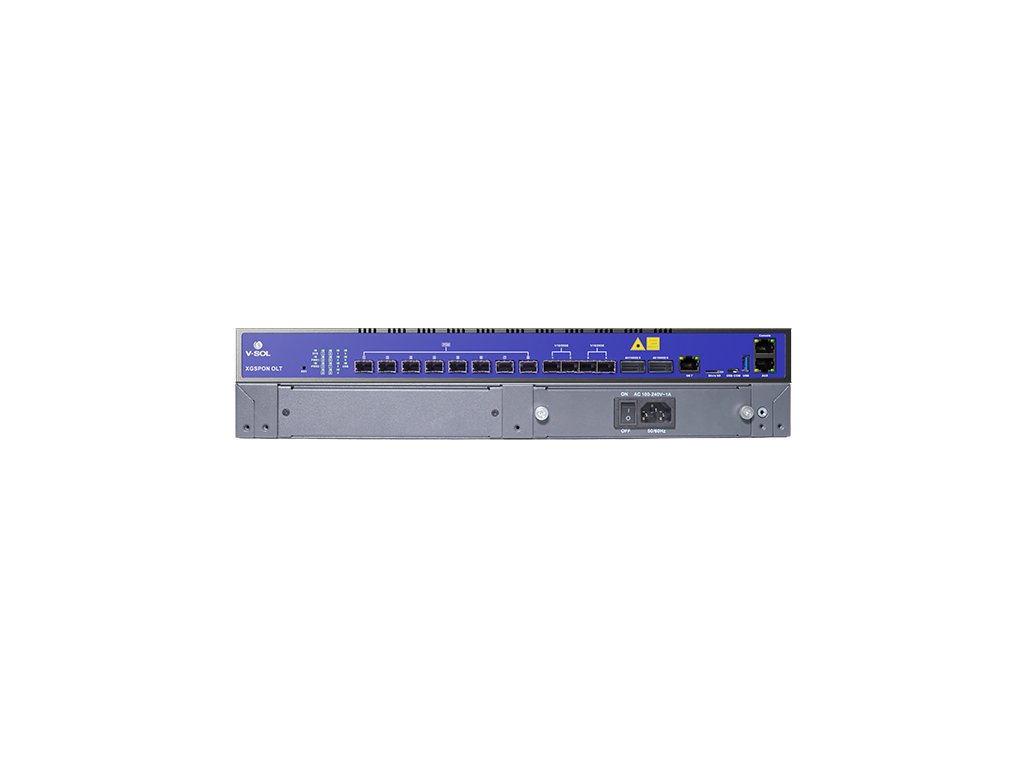

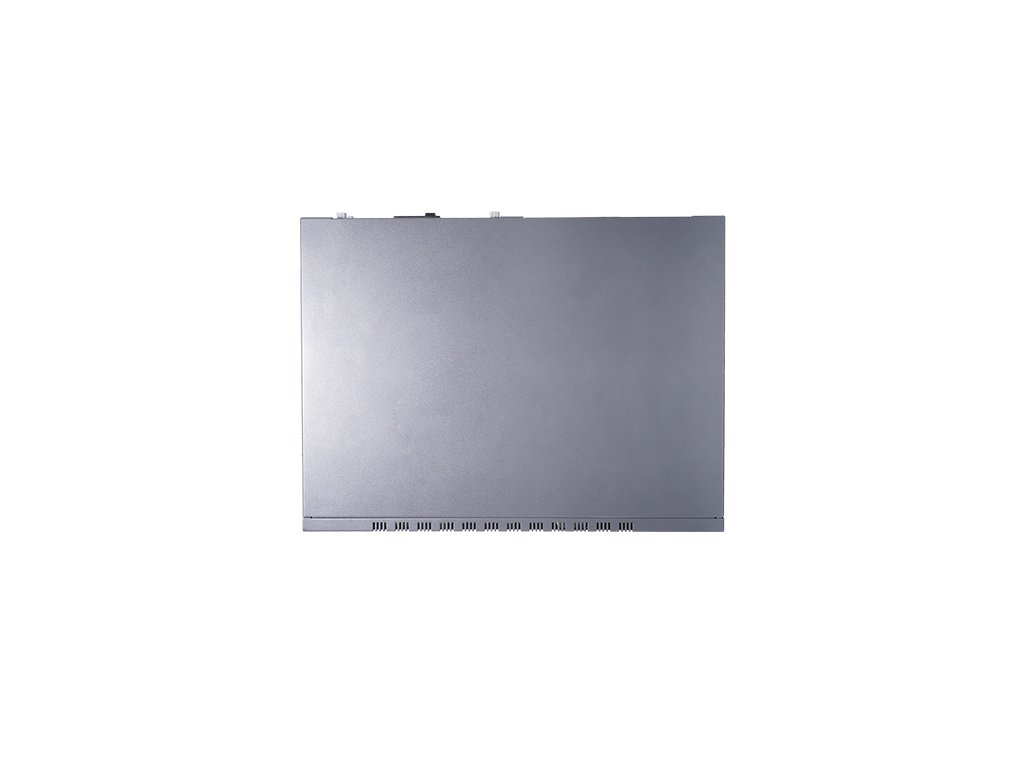

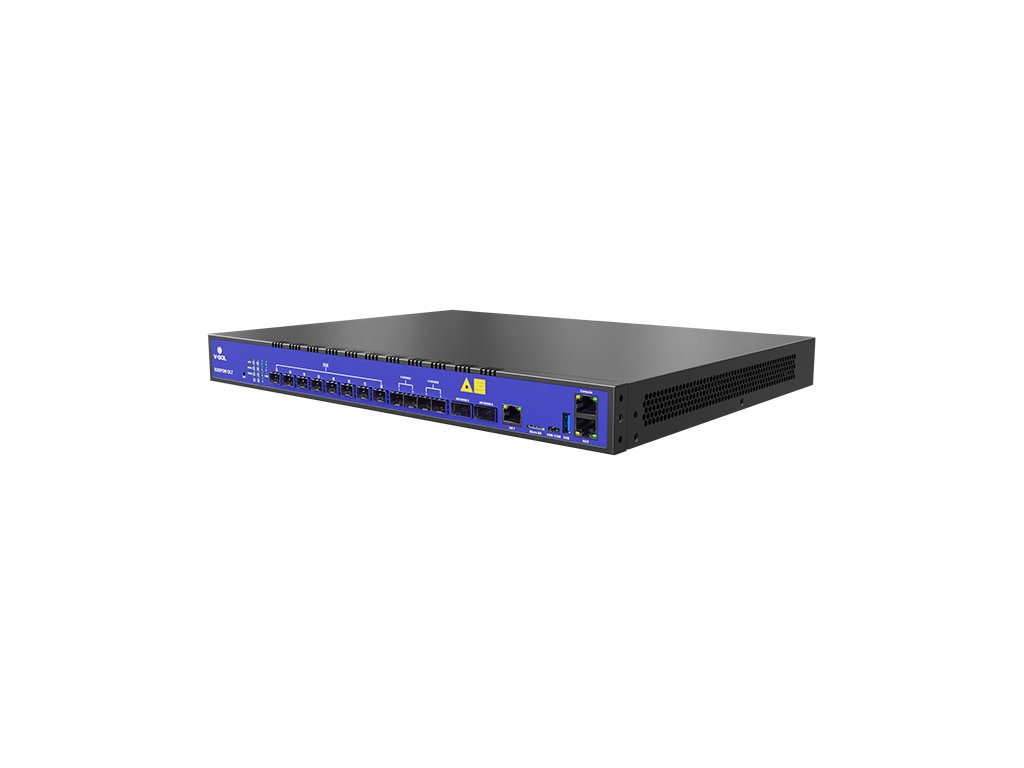

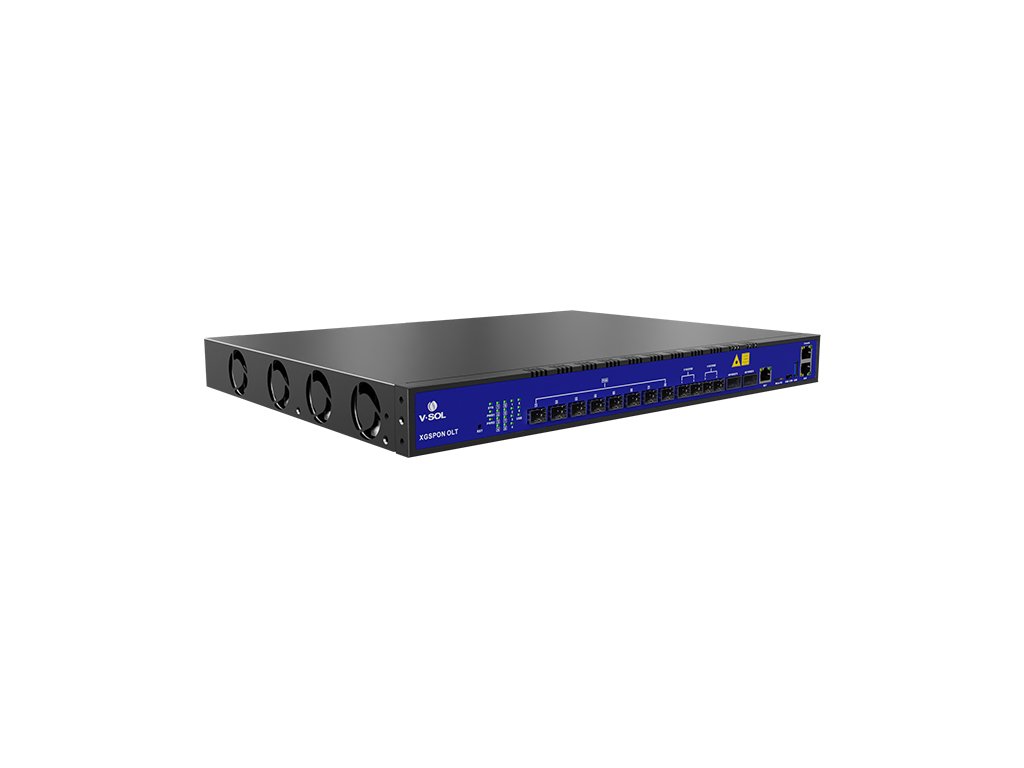

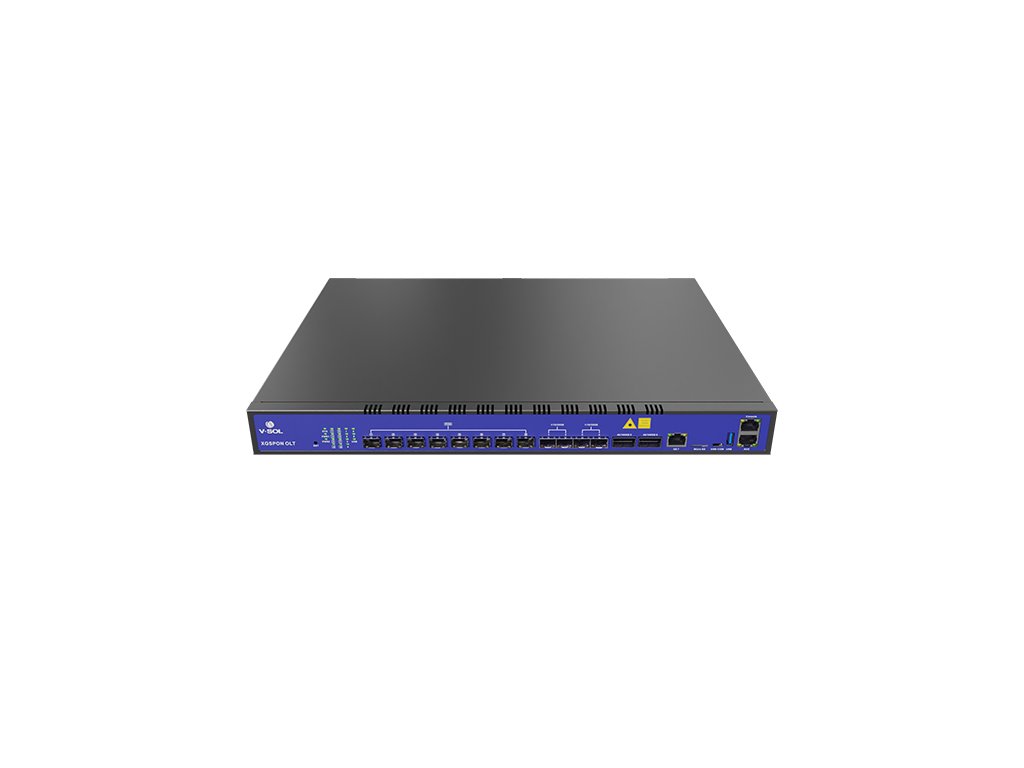

XG(S)-PON OLT V3600G1-C – 8 PON Ports, GPON / XG-PON / XGS-PON Combo Mode
The V3600G1-C is a 1U OLT built for high-capacity networks. It features 8 combo PON ports supporting GPON, XG-PON, and XGS-PON, and high-performance uplink interfaces: GE, 25GE, and 100GE.
✅ Main Advantages
- 8× PON ports in combo GPON / XG-PON / XGS-PON mode
- Uplink ports: 1× GE RJ45 + 4× 25GE SFP28 + 2× 100GE QSFP28
- Maximum split ratio 1:256, recommended 1:128
- Transmission up to 20 km
- Strong switching capacity, advanced management features
- Good power vs performance balance
📊 Technical Specifications
| Parameter | Value |
|---|---|
| PON Ports | 8× GPON / XG-PON / XGS-PON combo |
| Uplink Ports | 1× GE RJ45 + 4× 25GE SFP28 + 2× 100GE QSFP28 |
| Max Split Ratio | 1:256 (recommended 1:128) |
| Transmission Distance | 20 km |
| Dimensions (W × D × H) | 442 × 330 × 43,6 mm |
| Weight | ≈ 4,8 kg |
| Power Consumption | 150 W |
| Operating Temperature | −20 °C to +60 °C |
| Storage Temperature | −40 °C to +70 °C |
| Relative Humidity | 5-95 % non-condensing |
🛡️ Advanced Features
- Support for GPON, XG-PON, XGS-PON; mode switching capability
- Management via Web, CLI, Telnet, SNMP
- VLAN, ACL, QoS, IGMP Multicast, port isolation
- Alarm, port status monitoring, user traffic statistics
✅ Ideal Use Cases
- Large FTTH rollouts
- Operators requiring high throughput and flexible deployment
- Networks planning migration to XGS-PON
- Campus / Enterprise deployments
Additional parameters
| Category: | 1U OLT – compact all-in-one device |
|---|---|
| Warranty: | 1 year |
| Type of PON network: | GPON, XGS-PON, XG-PON |
| ? Uplink ports: | SFP+ ( 1/10GE), SFP+ (1/10GE) |
