EG8145V5
Code: EG8145V5_OEMRelated products
Product detailed description

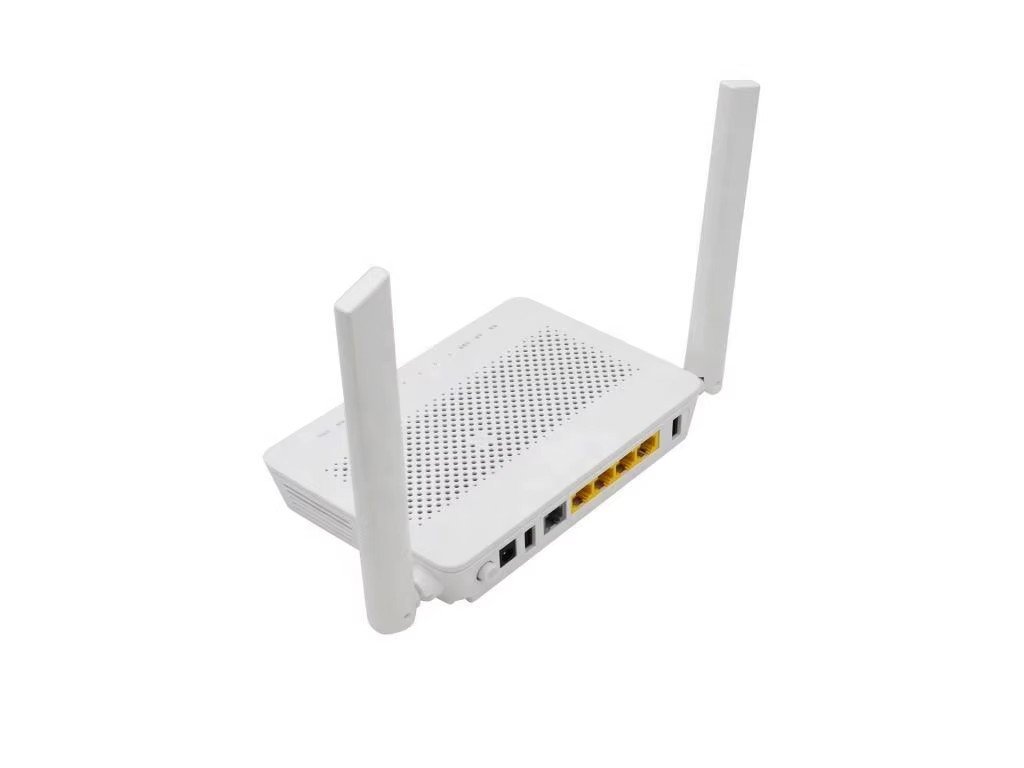

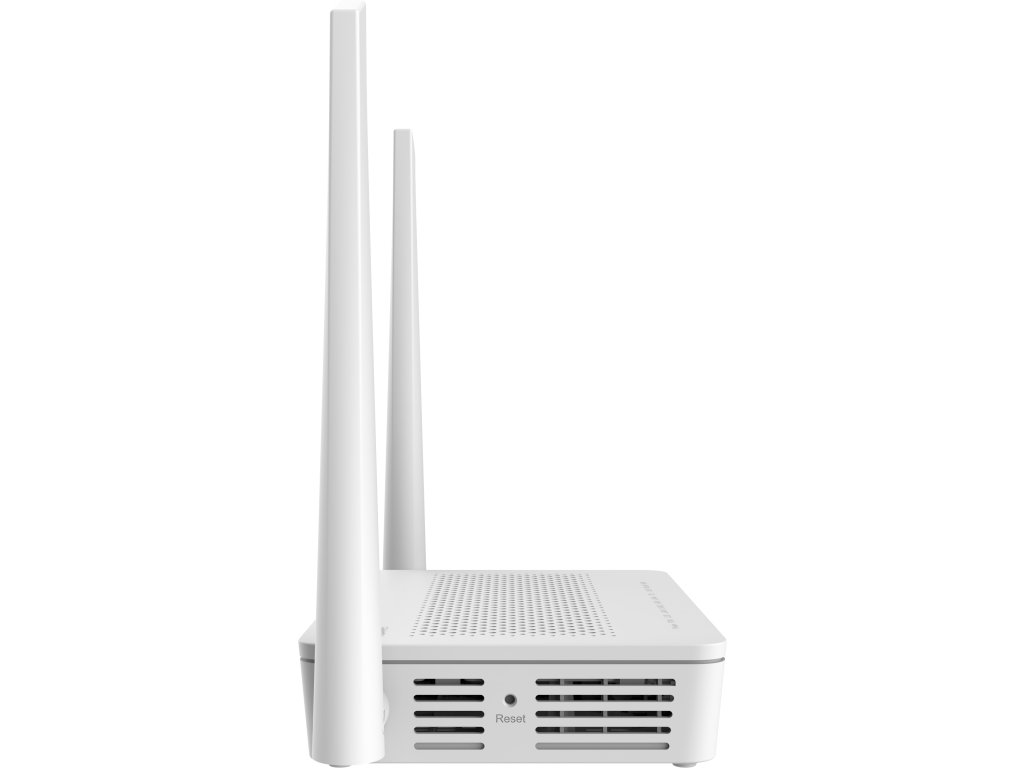

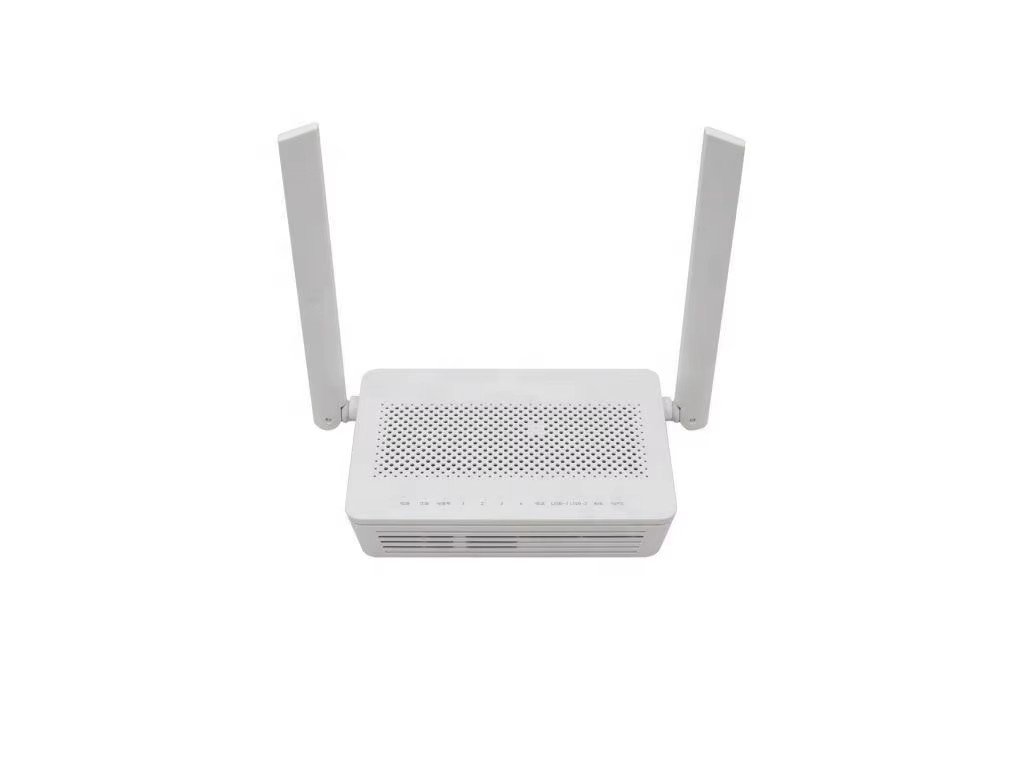

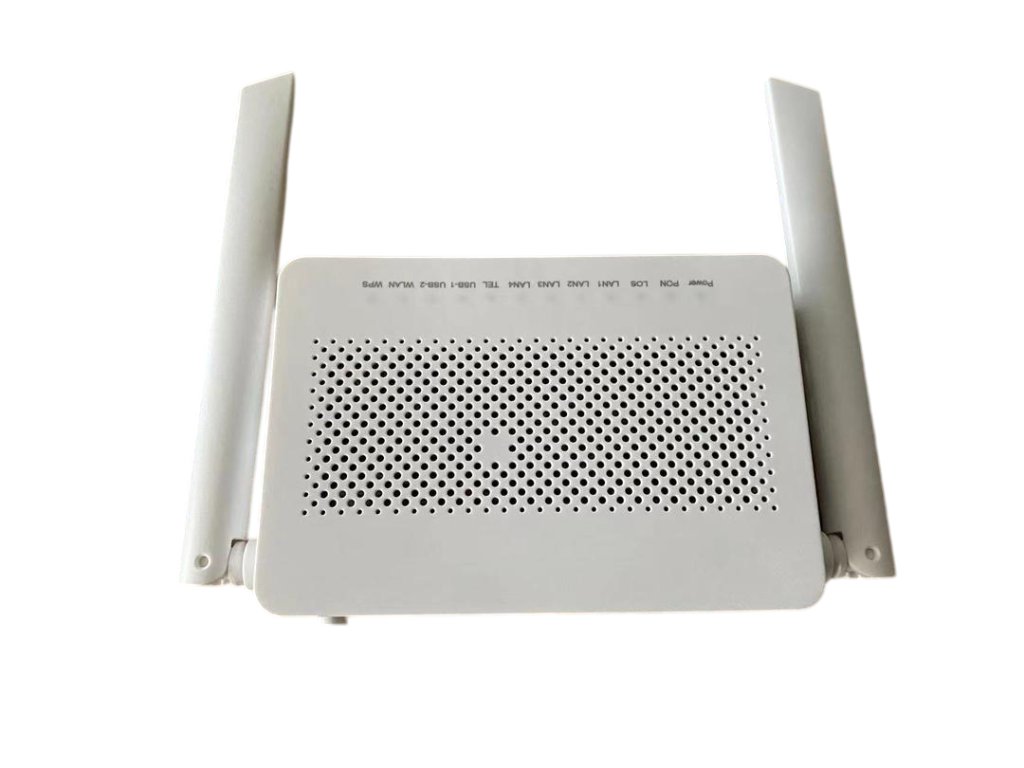

EG8145V5 – GPON ONT with 2.4G/5G Wi-Fi and USB
EG8145V5 is an intelligent GPON ONT router with dual-band Wi-Fi, USB port, and advanced management functions. Designed for homes and small businesses seeking a stable and secure fiber connection.
Main Features

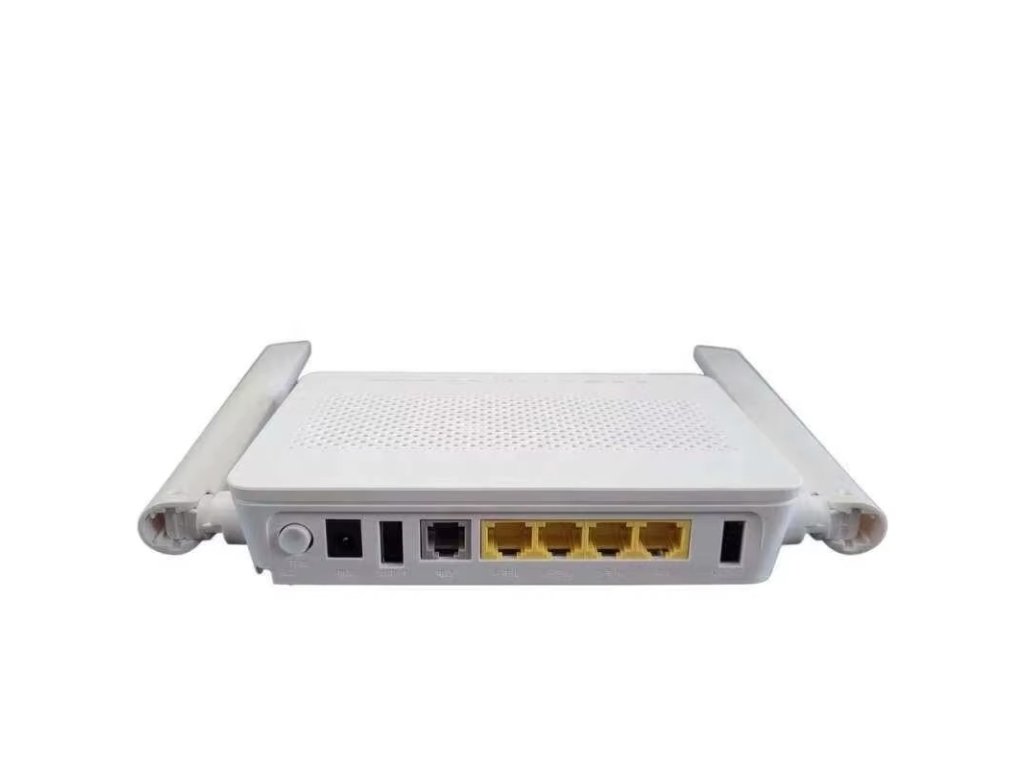

- 1× GPON port (SC/APC)
- 4× Gigabit Ethernet LAN
- 1× POTS (phone port)
- Dual-band Wi-Fi 802.11ac 2.4GHz + 5GHz
- 1× USB 2.0 for file and printer sharing
- IPv6 support, NAT/NAPT, port forwarding, QoS
- Parental controls, smart Wi-Fi coverage

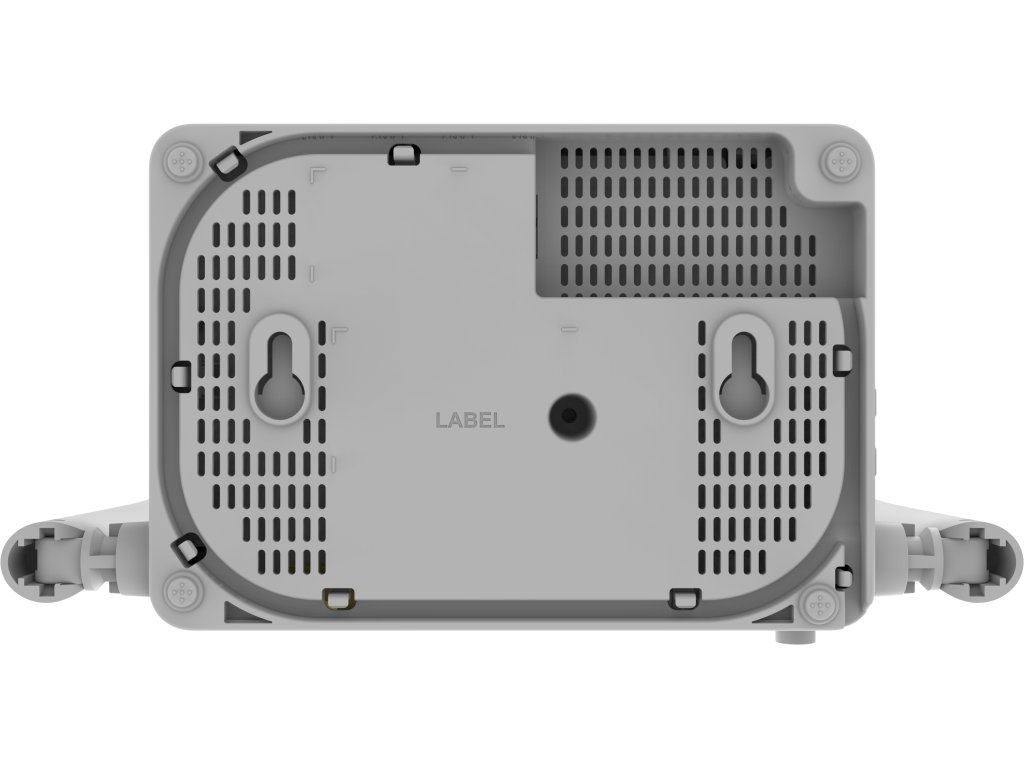

- Can be mounted on a desk or wall
Technical Specifications
| Basic Parameters | |
|---|---|
| Dimensions (H×W×D) | 30 × 173 × 120 mm |
| Weight | Approx. 250 g |

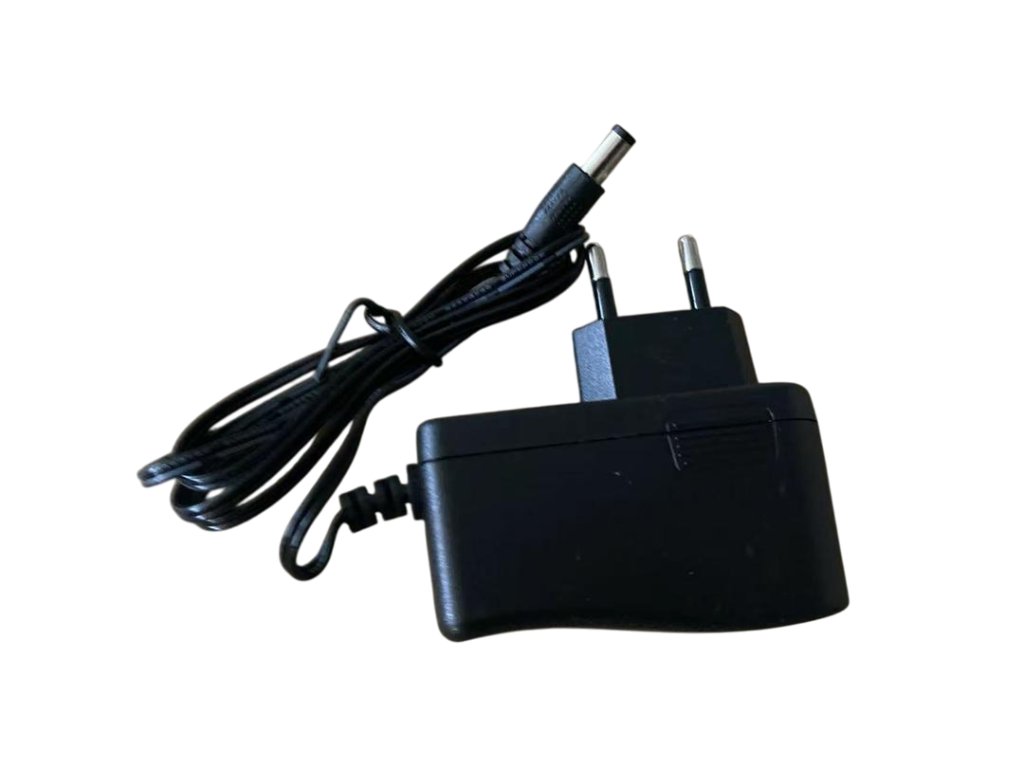

| Power Supply | 11–14 V DC, 1.5A / Adapter 100–240 V AC |
| Power Consumption | 5.3 W (typical) / 18 W (max) |
| Operating Temperature | 0 °C to 40 °C |
| Humidity | 5% to 95% RH (non-condensing) |
| Interfaces | |
|---|---|
| GPON | Class B+, sensitivity -27 dBm |
| LAN | 4× GE RJ45 |
| Wi-Fi | 2.4G (300 Mbps), 5G (867 Mbps), 2×2 MIMO |
| POTS | 1× RJ11, G.711A/u, G.729a/b, G.722 |
| USB | 1× USB 2.0 (FTP, SAMBA, DLNA) |
Application
EG8145V5 is ideal for homes or offices requiring a reliable fiber connection for voice, video, and high-speed data services.
Additional parameters
| Category: | ONT units |
|---|---|
| Warranty: | 2 years |
| Downlink port: | 1GE |
| Compatibility: | EA5800, MA5800, VSOL V1600, MA5600 |
| Type of PON network: | GPON |
| Wi-Fi: | Wi-Fi 5 (802.11ac) |
