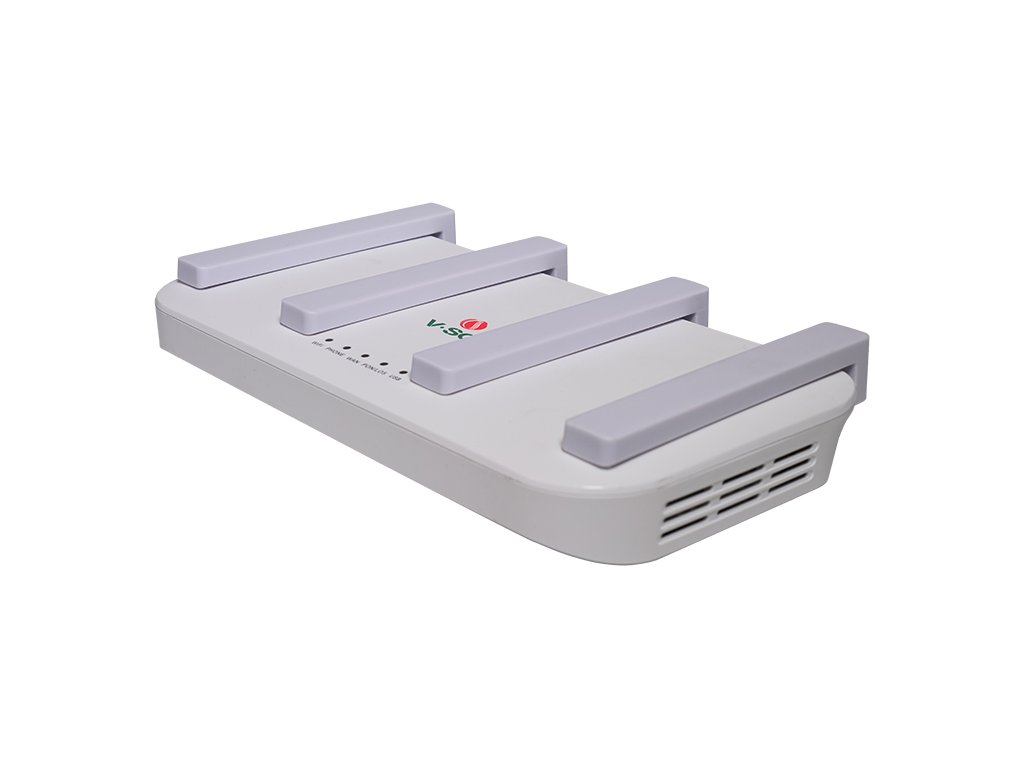

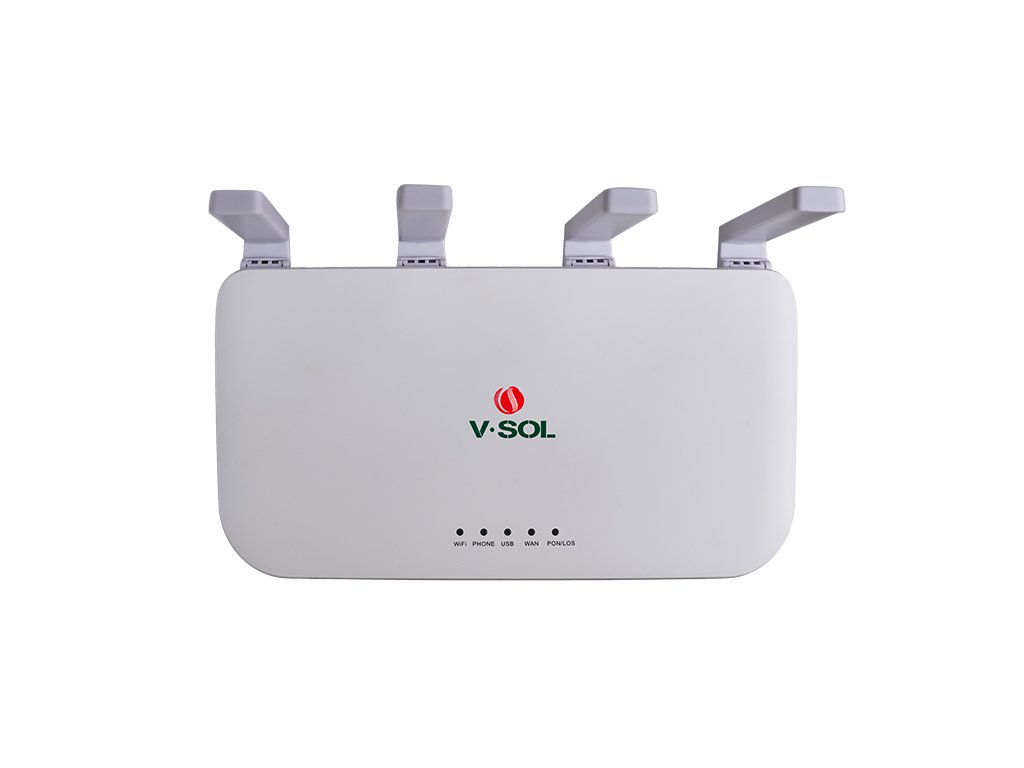

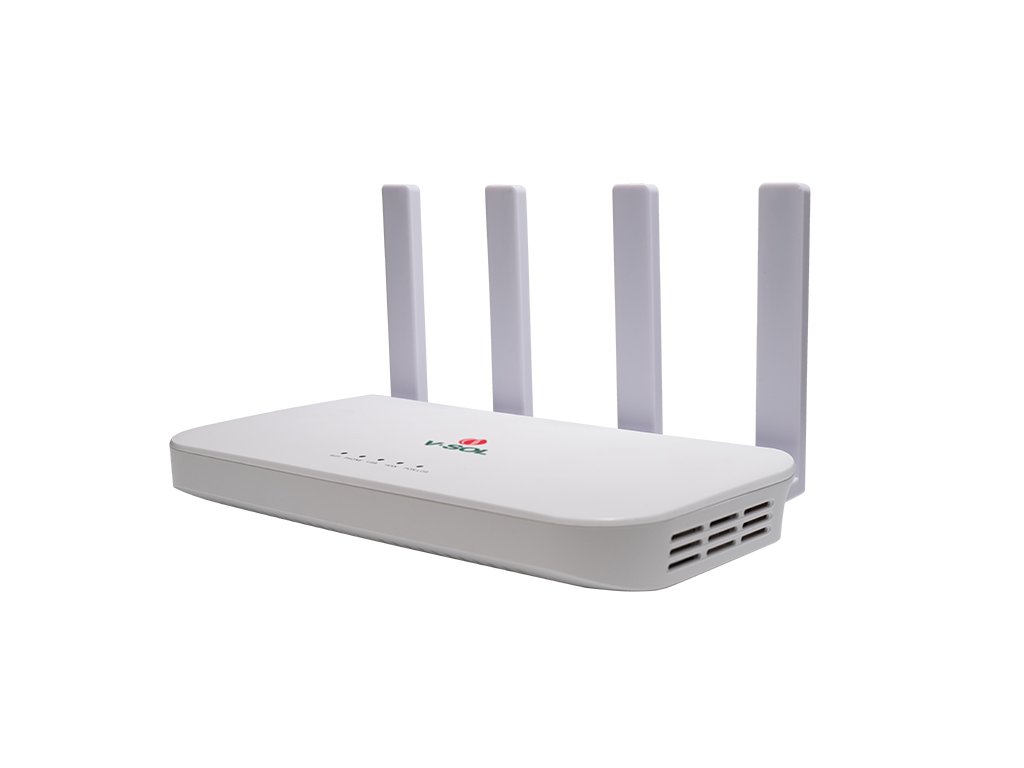

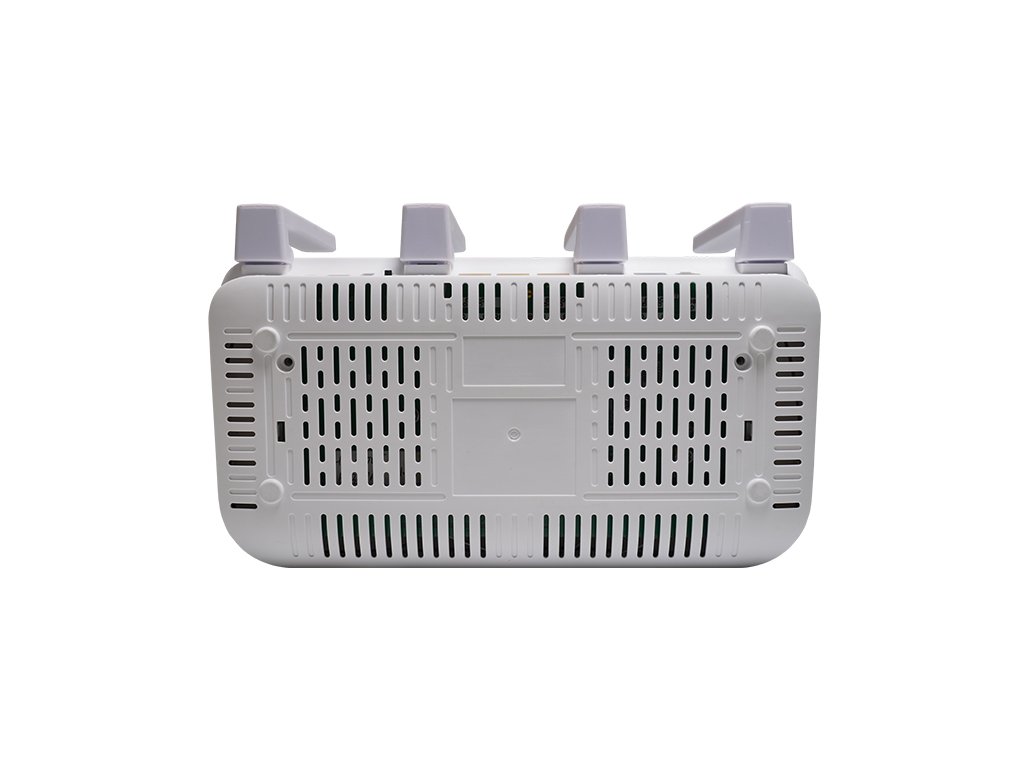

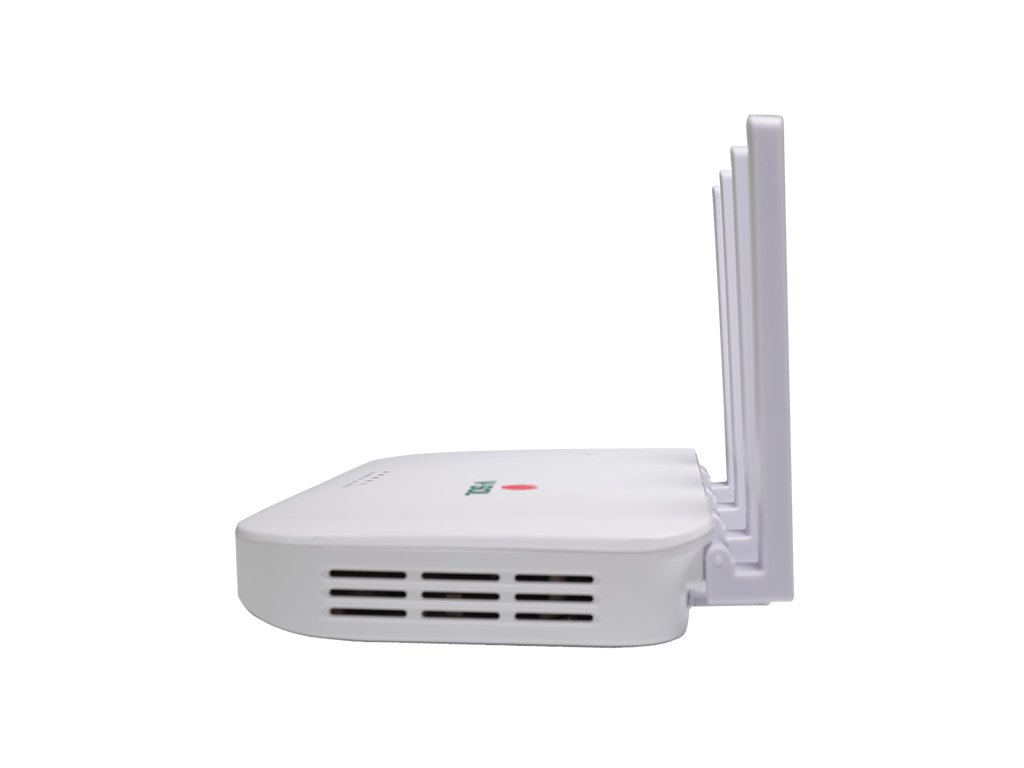

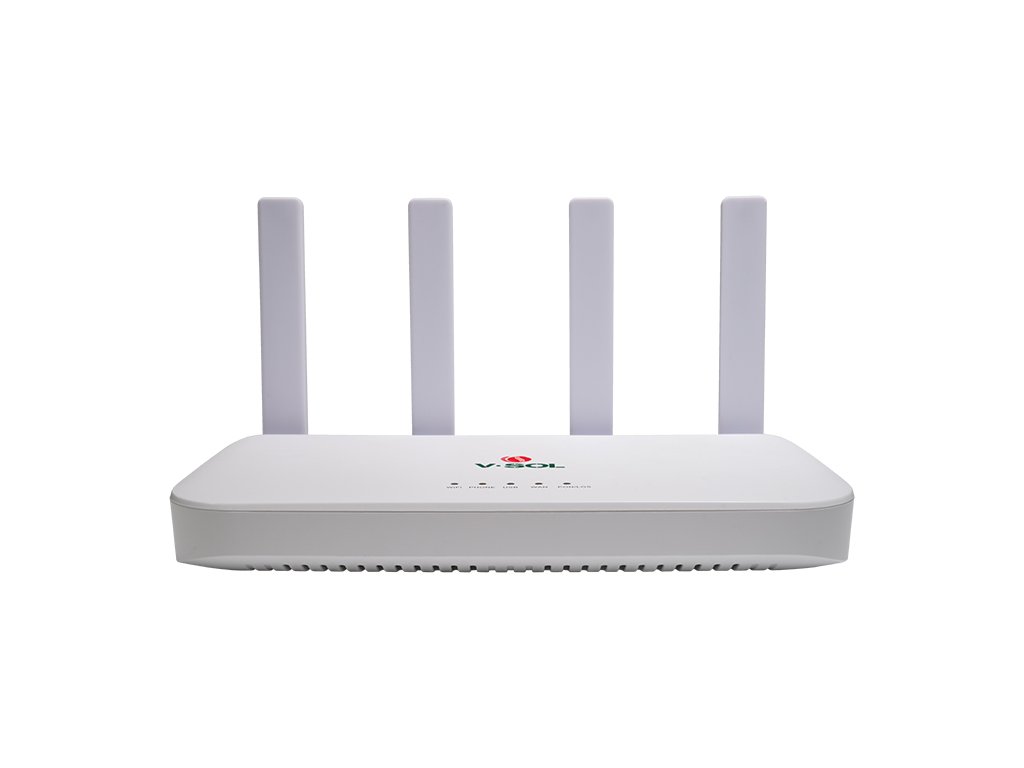

VSOL V2804AX
Code: V2804AX V1.2ARelated products
Product detailed description
VSOL V2804AX – XPON ONT 1×PON + 4×GE + USB 3.0 + Wi-Fi 6 (AX1800)
VSOL V2804AX is a high-speed home and business ONT with dual-mode XPON (EPON/GPON), four Gigabit LAN ports, USB 3.0 and Wi-Fi 6 (AX1800). It acts as a complete FTTH solution – fibre terminal, router and wireless access point in one device.
✅ Key Features
- XPON Dual Mode – automatic EPON/GPON detection for universal deployment.
- 4× GE LAN ports – connect PCs, NAS, set-top boxes or smart TVs.
- Wi-Fi 6 (AX1800) – faster speeds, lower latency and more stable connections.
- USB 3.0 port – for file or printer sharing across the network.
- All-in-one HGU solution – ONT + Router + Wi-Fi in a single unit.
📊 Technical Specifications
| Parameter | Value |
|---|---|
| PON Interface | 1× XPON (EPON PX20+ / GPON Class B+), SC/UPC single-mode, up to 20 km reach |
| LAN Ports | 4× GE (RJ-45 10/100/1000 Mb/s, auto-MDIX) |
| USB Port | 1× USB 3.0 (5 Gb/s, NAS/printer sharing) |
| Wi-Fi | Wi-Fi 6 (802.11ax) dual-band 2.4 + 5 GHz, up to 1800 Mb/s (574 + 1201) |
| Power / Consumption | 12 V DC / 1 A | ≤ 18 W |
| Dimensions / Weight | 260 × 157 × 46 mm / ≈ 0.55 kg |
| Operating Temperature / Humidity | −10 °C to +55 °C / 5–95 % RH (non-condensing) |
🛡️ Advanced Features
- IPv4/IPv6, PPPoE, DHCP, NAT, DMZ, DDNS.
- QoS: 802.1p, 4 queues, SP/WRR scheduling.
- VLAN: tag / transparent / trunk, up to 8 VLANs.
- Multicast: IGMP v1/v2 + Snooping (64 groups).
- Security: Firewall, DDoS Protection, ACL/MAC/URL filters.
- Management: Web GUI, Telnet, OMCI, TR-069 (for ISPs).
✅ Ideal Use
- Homes with FTTH and multiple wireless devices needing Wi-Fi 6 coverage.
- Small offices using wired and wireless connections with high bandwidth demand.
- Operators deploying integrated ONT + Wi-Fi router solutions (HGU).
VSOL V2804AX delivers next-generation FTTH performance combining Wi-Fi 6, Gigabit LAN and XPON technology in one compact device.
Additional parameters
| Category: | ONT units |
|---|---|
| Warranty: | 1 year |
| Compatibility: | MA5800, VSOL V1600, MA5600 |
| Downlink port: | 1GE |
| Type of PON network: | GPON, EPON |
| Wi-Fi: | Wi-Fi 6 (802.11ax) |
