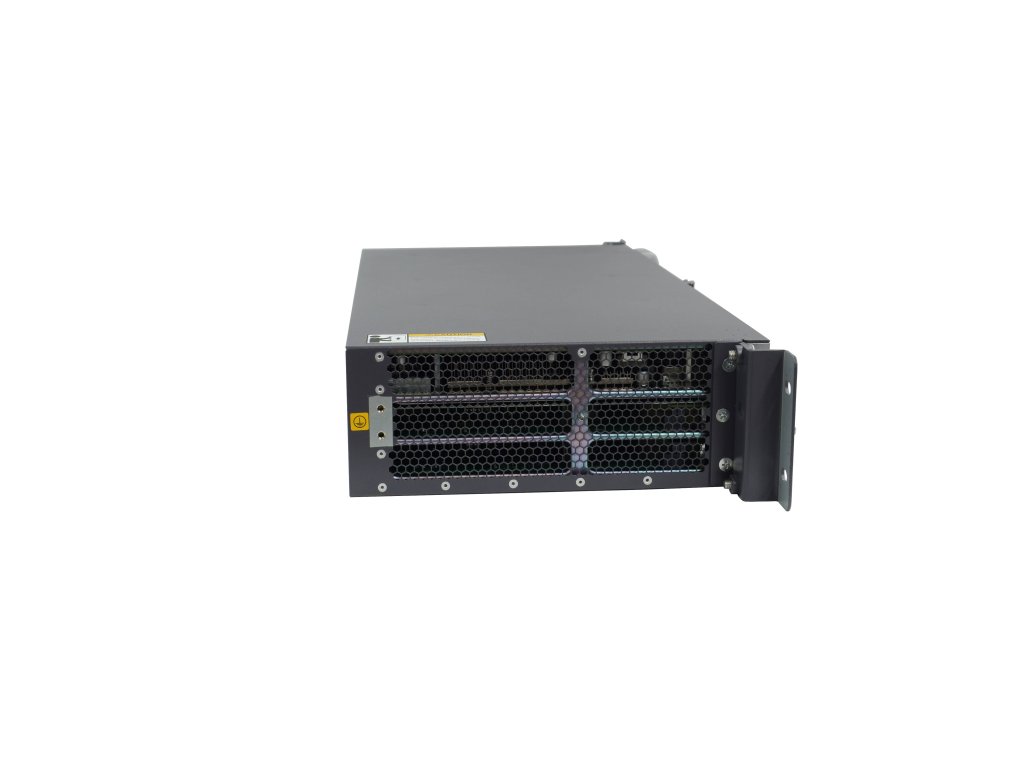

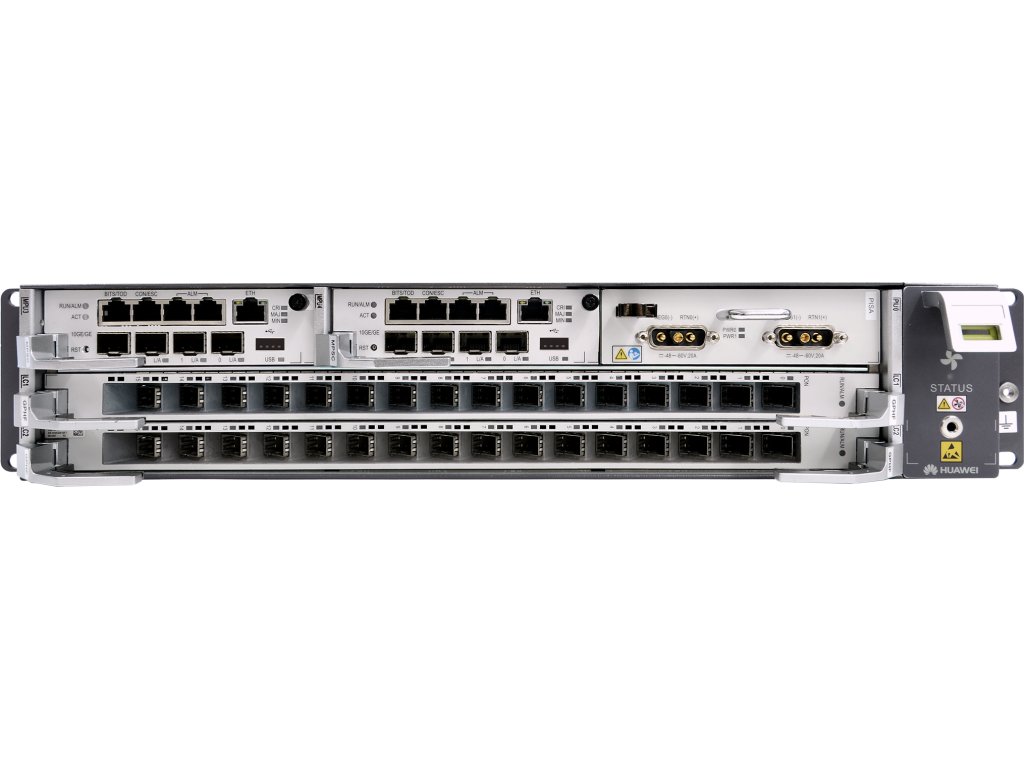

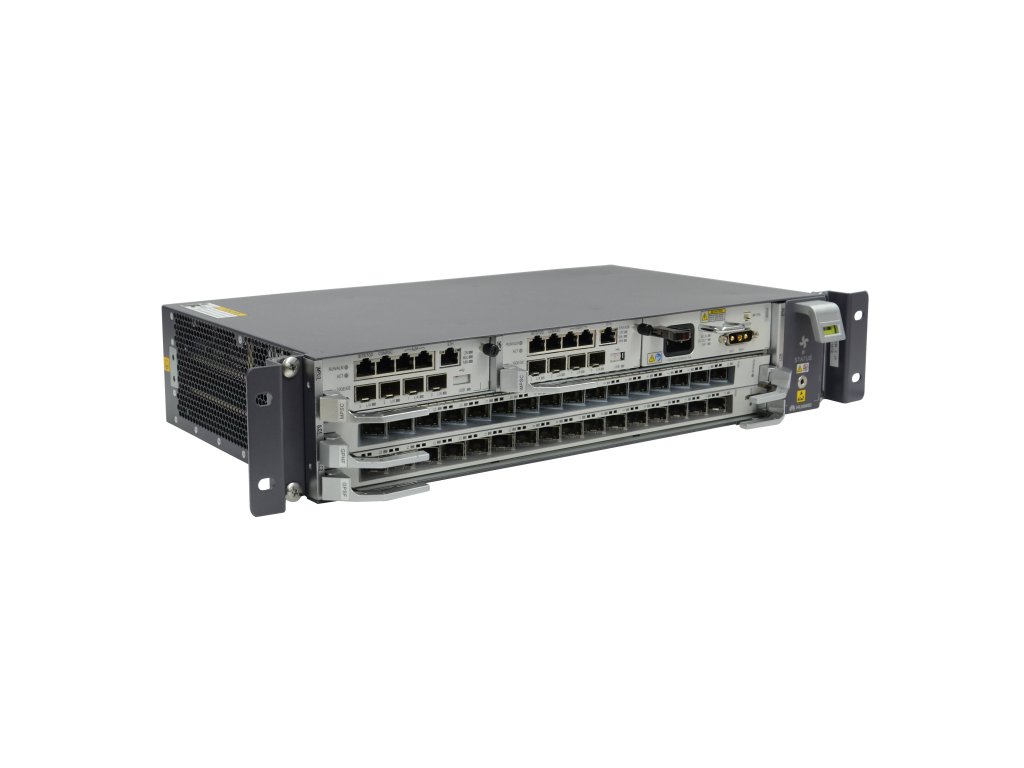

OptiXaccess MA5800-X2 Mini OLT Service Shelf
Kód: H90Z5BPSB02AG2Související produkty
Detailní popis produktu
Parameters | OptiXaccess MA5800-X2 |
---|---|
Board Configuration | Control board slots: 3, 4 Service board or upstream interface board slots: 1 to 2 Does not support universal interface board Power board slot: 0 |
Dimensions (W x D x H) |
2U high and 19 inches wide Excluding mounting brackets: 442 x 268.7 x 88.1 mm Including IEC mounting brackets: 482.6 x 268.7 x 88.1 mm |
Maximum Weight (Including Mounting Brackets) | 9.4 kg |
Power Supply Modes | DC power support (dual for backup) AC power supply + battery for backup |
Working Voltage Range | DC power supply: –38.4 V to –72 V AC power supply: 100 V to 240 V |
Rated Voltage | DC power supply: –48 V/–60 V AC power supply: 110 V/220 V |
Switching Capacity of the Control Board (Load Sharing Mode) | 480 Gbit/s |
Maximum Bandwidth per Service Slot (Load Sharing Mode) | 80 Gbit/s |
System Layer 2 Packet Forwarding Rate (Load Sharing Mode) | 714 Mpps |
Maximum Number of Concurrent 4K Video Users | 2000 |
Maximum Number of ARP/Routing Entries | 131,072 |
System Reliability Specifications | System availability for typical configurations: > 99.999% Mean-Time-Between-Failures (MTBF): Approximately 45 years. Note: Due to different network environments and different boards used by devices, the preceding MTBF (45 years) of EA5800 is only for reference. The average repair time for Field Replaceable Units (FRUs) is about 2 hours. The preceding values are only for reference. For details, please contact relevant Huawei engineers. |
GPON Ports/XG(S)-PON Ports | 32 |
GE/FE Ports | 96 |
10 GE Ports | 16 |
Type C Switch Latency | < 30 ms (with industrial optical ring board) |
Doplňkové parametry
Kategorie: | 2-10U |
---|---|
Záruka: | 1 rok |
Kompatibilita: | MA5800 |
Velikost (U): | 2U |
