VSOL V2804AX15
Kód: V2804AX15 V1.0Související produkty
Detailní popis produktu

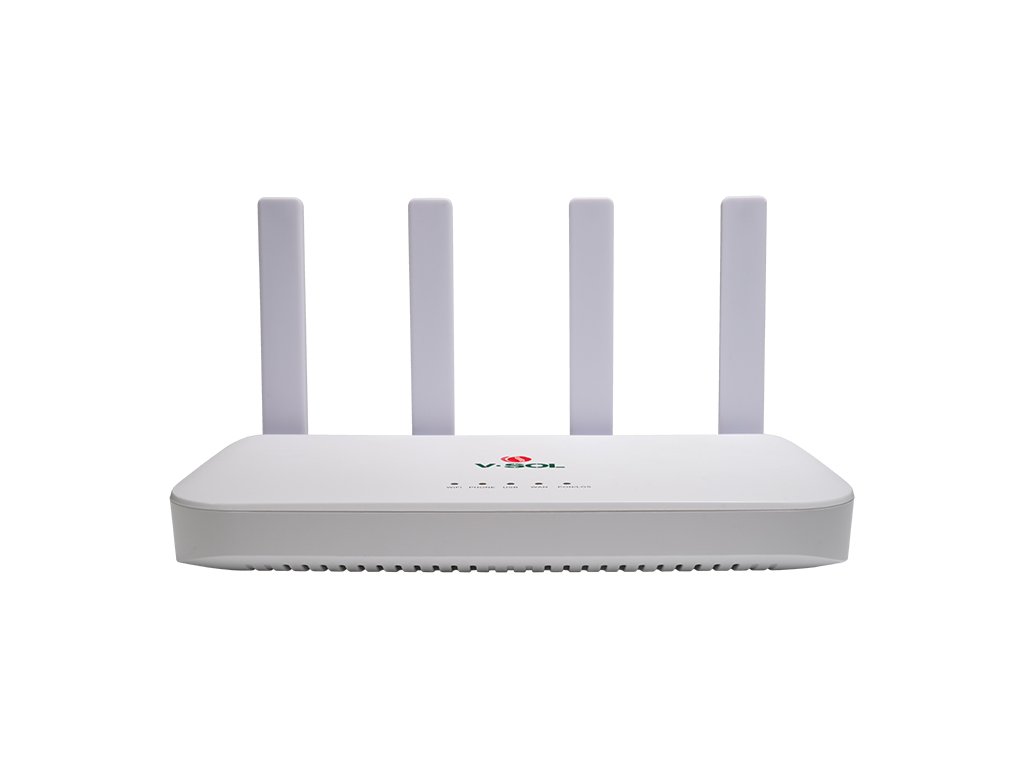

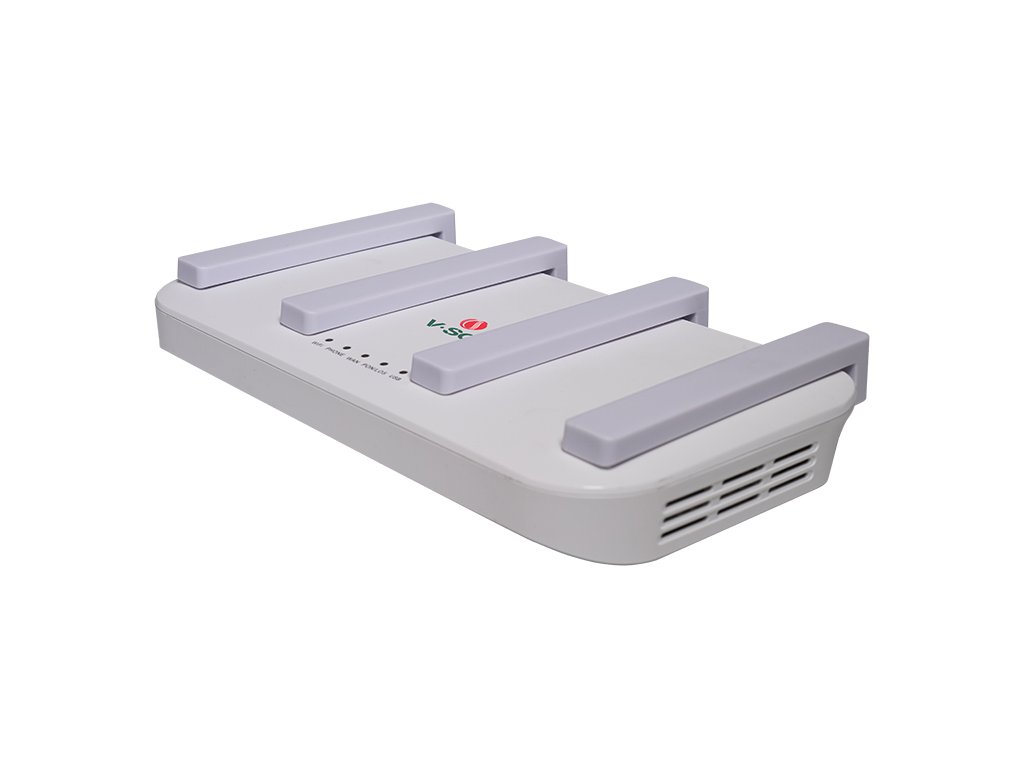

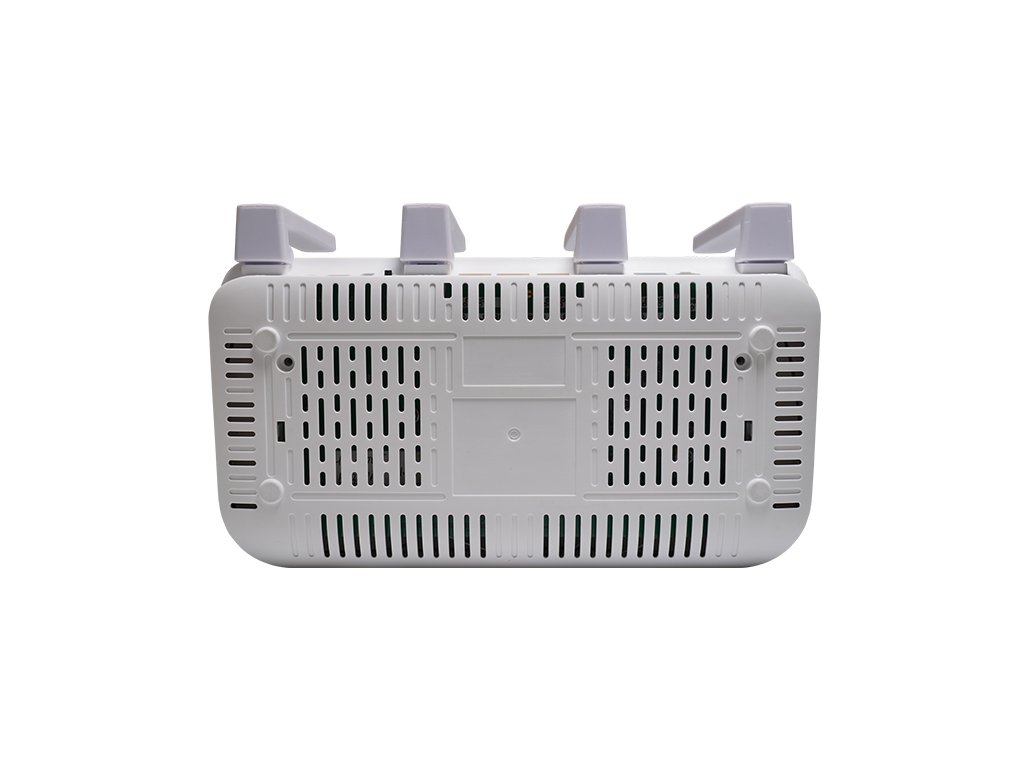

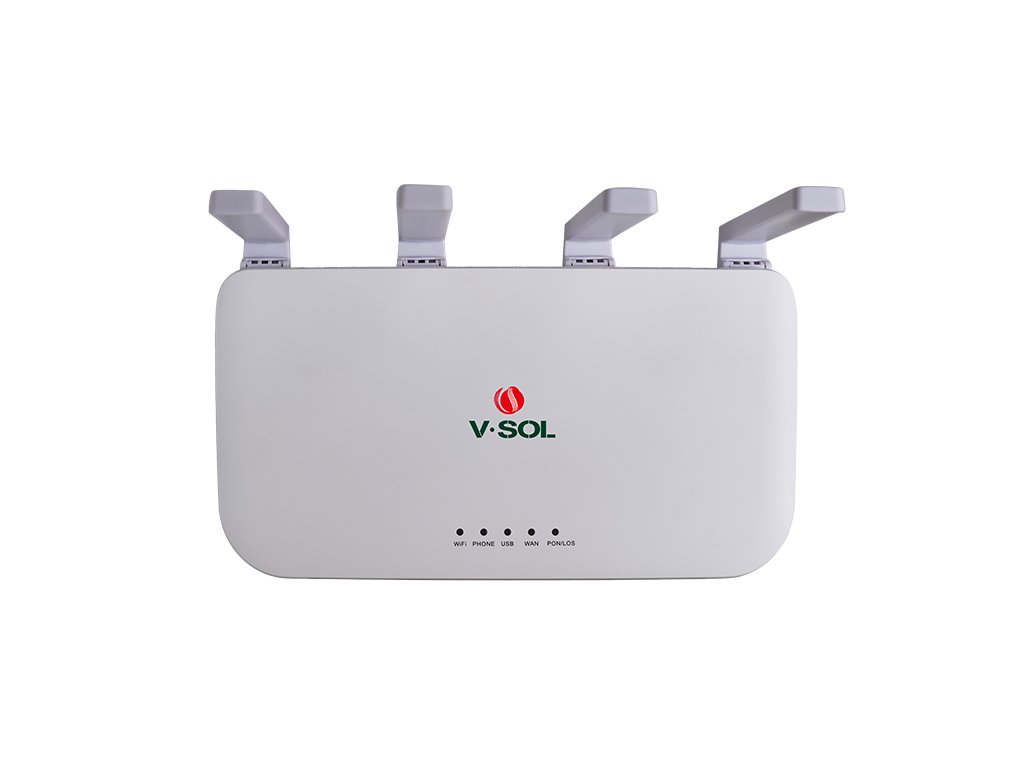

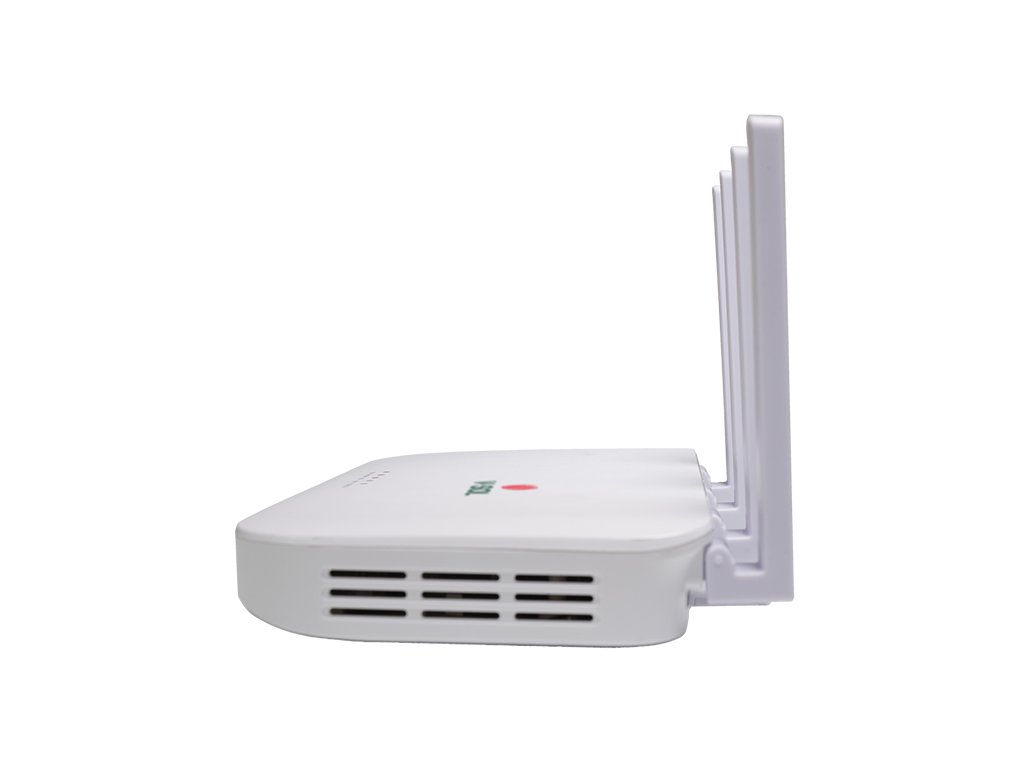

V2804AX15 XPON Dual-band WiFi 6 ONT
AX1500 WiFi 6 | OFDMA Multi-User | One SSID Dual Band
Hardware Parameter | |
---|---|
Dimension | 250mm×145mm×36mm(L×W×H) |
Net weight | 0.34Kg |
Operating condition | Operating temp:0 ~ +55°C |
Operating humidity:5 ~ 90% (non-condensed) | |
Storing condition | Storing temp: -30 ~ +60°C |
Storing humidity: 5 ~ 90% (non-condensed) | |
Power adapter | DC 12V, 1.5A, external AC-DC power adaptor |
Power supply | ≤18W |
Interface | 1XPON+4GE+USB3.0+WiFi6 |
Indicators | PWR,PON,LOS,WAN,WiFi,ETH1~4,WPS,USB |
Interface Parameter | |
PON Interface | 1XPON port(EPON PX20+ and GPON Class B+) |
SC single mode, SC/UPC connector | |
TX optical power: 0~+4dBm | |
RX sensitivity: -27dBm | |
Overload optical power: -3dBm(EPON) or -8dBm(GPON) | |
Transmission distance: 20KM | |
Wavelength: TX 1310nm, RX1490nm | |
User interface | 4×GE, Auto-negotiation,RJ45 ports |
Antenna | 4 ×5dBi external antennas |
USB | 1×USB3.0 for Shared Storage/Printer |
Function Data | |
O&M | WEB/TELNET/OAM/OMCI/TR069 |
Support private OAM/OMCI protocol and Unified network management of VSOL OLT | |
Internet connection | Support Routing Mode |
Multicast | IGMP v1/v2/v3, IGMP snooping |
MLD v1/v2 snooping | |
WIFI | Wi-Fi 6: 802.11a/n/ac/ax 5GHz & 802.11g/b/n/ax 2.4GHz |
WiFi Encryption:WEP-64/WEP-128/ WPA/WPA2/WPA3 | |
Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM | |
Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band | |
Support AX1500 | |
L2 | 802.1D&802.1ad bridge, 802.1p Cos,802.1Q VLAN |
L3 | IPv4/IPv6, DHCP Client/Server,PPPoE, NAT, DMZ, DDNS |
Firewall | Anti-DDOS, Filtering Based on ACL/MAC /URL |
Doplňkové parametry
Kategorie: | ONT |
---|---|
Záruka: | 1 rok |
Downlink port: | 1GE |
Kompatibilita: | MA5800, VSOL, MA5600 |
Typ PON sítě: | GPON, EPON |
Wi-Fi: | Wi-Fi 6 (802.11ax) |
